First Blyth turbine base sets sail

The first turbine foundation for the Blyth offshore wind farm has begun its journey up the River Tyne on route to its final destination.

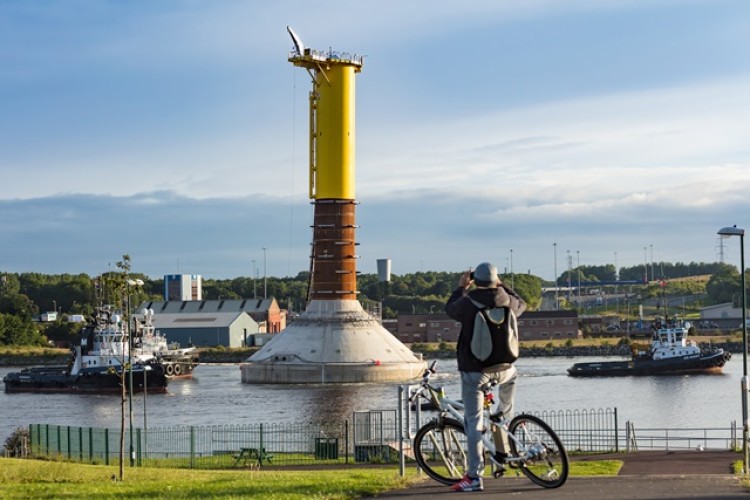

Gravity based foundations being constructed on the River Tyne will be floated out to sea and submerged ahead of turbine installation over the summer Above: Gravity based foundations being constructed on the River Tyne will be floated out to sea and submerged ahead of turbine installation over the summer

EDF Energy Renewables is building the Blyth Offshore Demonstrator Wind Farm after taking over responsibility for the scheme from Narec (now ORE Catapult) in October 2014.

The project will see five wind turbines with a total generating capacity of 41.5MW installed around 6.5km off the coast of Blyth in northeast England.

Concrete gravity based foundations (GBFs) form part of the project and are being installed using a new float and submerge method – the first time this method has been used for offshore wind turbines.

Designed and built by BAM Nuttall in the Neptune dry dock on the Tyne, the GBFs are being floated into position at sea and submerged onto the seabed to provide the support structures that act as the foundations for the installation of the wind turbines.

Each GBF is made up of more than 1,800m3 of concrete and weighs more than 15,000 tonnes when installed on the seabed. The structures have a total height of around 60 metres from the base to the access platform.

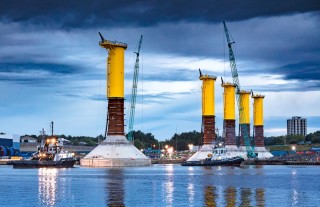

The GBFs have been constructed at the Neptune dry dock over the past 12 months by BAM Nuttall and these structures will be floated down the river to the Port of Tyne, where extra ballast will be added ahead of their tow-out to the offshore wind farm site.

Once the GBFs are put into position over the summer, specialist contractor VBMS (part of Boskalis) will start laying the inter array cables that will connect the individual wind turbines.

Once the cable is securely buried under the sea bed, installation of five MHI Vestas V164 turbines will start. These will have a power rating of 8.3MW – the largest to be used on an offshore wind farm.  It is anticipated that the turbines will start generating power by the end of 2017.

EDF Energy Renewables chief executive Matthieu Hue said: “This is the first major offshore operation on this project and over the coming months people will be able to see the wind farm being built out at sea. This ground-breaking scheme will benefit the northeast of England and help the UK to meet its future low carbon electricity needs.

“This is the first time that this float and submerge method has been used on a wind farm project. The GBFs are held in place by gravity and this unique design reduces the need to use expensive marine equipment for the installation on the sea bed.”

Wholly owned by EDF Energies Nouvelles, the Blyth Offshore Demonstrator project is being built by EDF Energy Renewables, a 50-50 UK joint venture between EDF Energies Nouvelles and EDF Energy. The wind farm will be EDF Energy Renewables’ second offshore wind farm construction following the Teesside wind farm off the North East coast at Redcar.









MPU

Further Images

Download our free construction news iPhone / iPad app. Sign up to our FREE email newsletters or subscribe to our RSS feed for regular updates on the latest Construction News, Plant News, Contract News & Supplier News. The Construction Index also provides the latest Construction Tenders, Construction Market Data & Construction Law Commentary all FREE.

This article was published on 12 Jul 2017 (last updated on 13 Jul 2017).
