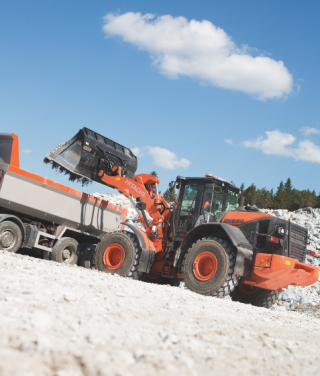

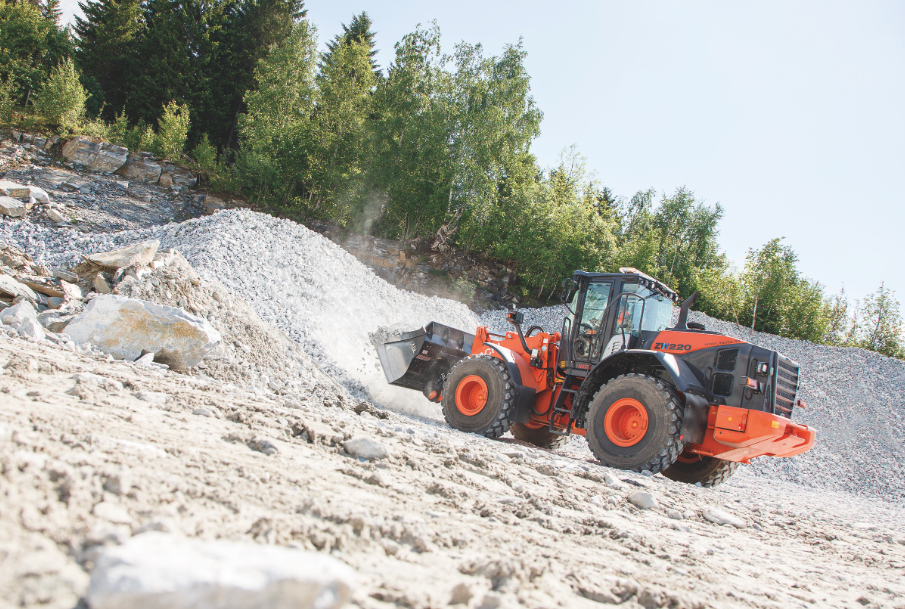

Hitachi launches the new ZW220-5 wheel loader

Digger Blogger | 12:34, Wed August 14 2013

Hitachi has designed the new wheel loader to satisfy the requirements of its European customers for machines with an exceptional level of comfort, as well as excellent productivity, advanced technology, and a range of features for enhanced sustainability, safety and easy maintenance.

Hitachi Construction Machinery presented the new ZW220-5 wheel loader at Bauma.

Comfort was one of the most important considerations for the design of the new ZW220-5. The cab is more spacious than the previous model, because the heated air-suspension seat can slide further back, providing more leg room. The tilting telescopic pop-up steering column has also been repositioned to create additional space.

The air conditioning system regulates the temperature inside the cab, and an optional filter is available for industrial waste job sites. Sound insulation reduces noise levels from the local environment and improves the operator’s overall experience.

The ZW220-5 wheel loader complies with EU regulations on emission standards, but does not compromise on productivity. It has a 7.8-litre six-cylinder water-cooled turbo engine that enables a powerful digging performance, impressive travel speeds and excellent fuel consumption. The new

ZW-5 wheel loader is easier to manoeuvre than the previous model, which also results in higher levels of productivity. A new clutch cut-off system allows for smooth operation when it is loading.

Two simple work modes provide an appropriate level of performance for a particular task. In Standard mode, the engine speed is controlled, which allows for smooth and efficient acceleration during loading, regular operations and travelling on level terrain. Fuel consumption is reduced by up to 10%, enhancing its environmentally friendly performance. The P mode is useful when greater traction force is required for heavy-duty excavation and travelling quickly uphill.

When changing work modes, the ZW220-5 has a quick power switch, an example of its advanced technology, which boosts the power when required. The wheel loader also features a new hydraulic circuit, which facilitates the combined operation of the bucket and lift arm for loading, and prioritises the use of the bucket for unloading.

The optional auto-engine shutdown function avoids fuel wastage while the wheel loader is long idling. In addition to lowering fuel costs for the customer, this also enhances the sustainability of the ZW220-5. It also has a muffler filter to capture air pollutants, which are automatically burnt thanks to an oxidation catalyst and exhaust temperature control.

To enhance safety on the job site, the ZW220-5 offers greater visibility from the operator’s seat thanks to a pillar-less windshield and large sun visor. The counterweight is also now visible from both sides of the machine. The shift-up delay to third gear makes the wheel loader safer to operate in confined spaces, because it can perform excavating and unloading tasks more safely in first and second gear.

Related Information

A variety of easy maintenance features have been incorporated into the design of the ZW220-5 to ensure maximum availability. For example, the redesigned engine and radiator cover can be opened fully, providing quick and convenient access for daily inspection. The greasing points, oil levels and fuel filters can all be accessed at ground level.

For operation in dust-filled environments, the ZW220-5 wheel loader can be equipped with an optional wide-pitch fin radiator to prevent clogging. Another useful feature for quick routine maintenance is the automatic reversible cooling fan, which allows for easy cleaning of the radiator with its one-minute automatic reverse rotation every 30 operating minutes.

Tadayoshi Aoki, HCME Engineer for wheel loaders, is looking forward to the reaction of the European market regarding the ZW220-5 machine. “We believe that the new wheel loader not only meets our customers’ expectations of high quality and reliability, but also provides a safe working environment, a comfortable cab with easy-to-use controls, and overall, a machine that responds quickly and precisely.”

Specifications

ZW220-5

Engine rated power  145kW

Operating weight  17,700-18,030kg

Bucket capacity  2.4-3.5m³

Breakout force  185kN
