Hard graft at Comrie colliery

Digger Blogger | 09:21, Wed March 25 2015

Hyundai machines have clock up 40,000 hours at a Scottish colliery and are still going strong.

Land Engineering Services (LES), based in West Yorkshire, is a mining, earthmoving and remediation company that operates throughout the UK.  The company won the tender in 2012 to ‘clear’ a contaminated colliery in Scotland.  LES invested in five Hyundai machines purchased from Derbyshire based Hyundai dealer, EP Industries, to help complete the task.

The former Comrie colliery site is recognised as the largest area of post-industrial dereliction in West Fife. When Land Engineering Services (LES) began working on the site in 2011 it was a combination of contaminated land, large areas of hard standing, associated with the former colliery pit head area, and a 40-metre high burning colliery waste tip (called a bing, apparently). Mor than 100 hectares of countryside were unfit for any conventional countryside use.

The project, which is likely to be completed later this year, has involved the extraction of 680,000 tonnes of coal (when completed) through the working of 52 hectares of the coal resource.  LES has used the revenue from the extraction for the treatment of spontaneous combustion on the ex-colliery spoil tip, reprofiling and the removal of dereliction on the bing.

The revenue has also been utilised on other LES run projects including the treatment of contamination in Bickram Wood and the former Rexco smokeless fuel plant.  And last but by no means least the creation of a new wetland habitat for great newts on the north of the site.

To complete this demanding project LES invested some £4.5 million in new plant which included excavators, dozers and articulated dump trucks (ADTs) to extract the remaining coal reserves and deal with the reclamation phase of the scheme.

Alongside four 50-tonne Bell ADTs, LES purchased five Hyundai machines, including two 23-tonne wheel loaders – the HL770-9s that operate at the coal stockpiling yard (pictured below)





The loaders are capable of loading 28-tonnes of coal into the road trucks in five or six passes.

Related Information

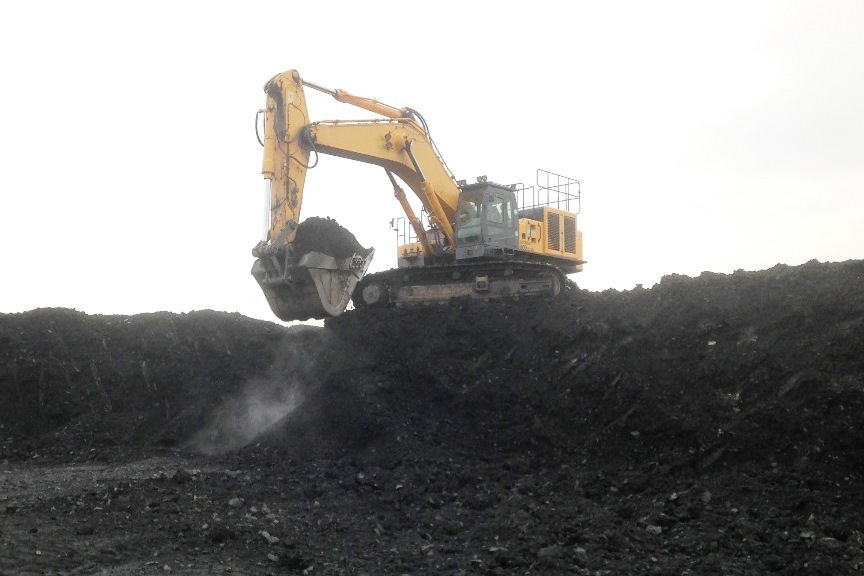

It also bought an 83-tonne Hyundai excavator – the R800-7A, which was the very first of this model to be delivered to a UK customer. That's it pictured at the top of the screen here.  The Hyundai R800-7A is powered by a 510hp Cummins QSX15 engine and is fitted with a standard 4.53cu.m bucket. Achieving a 110% fill factor – it loads the ADTs in four big passes and has them on their way to the tip in just 100 seconds.

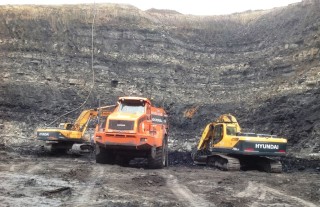

Also working onsite is an R290-9 – the only one of its kind in the UK – which excavates the mineral with a coal shovel specially manufactured by Allied Equipment and fitted by Hyundai dealer EP Industries.

The Hyundai machines have clocked up 40,000 hours between them – the R800-7A alone has almost 8000 hours on the clock – and all the machines are still going strong.  Iain Devine, LES managing director said: “The Hyundais are like workhorses – they are reliable and we have had no issues in the years they have been working onsite. The service and back-up from EP Industries has been excellent.  We have experienced 98% uptime with the Hyundais, which is quite an achievement for any hardworking machine.”





He added: “These machines are moving four or five thousand tonnes of coal and have dug out over 70,000 cubic metres of overburden per week, which is the rock and soil that lies above a coal seam, and they just keep on going.  The machines have a good pace on them too and the operators like the machines.

“We will be trading them in at the end of this project and will be investing in Hyundai machines again.”
