Japanese robots to work on high-rise buildings

24 Apr 18 Major Japanese contractor Shimizu Corporation is planning to put construction robots to work on a high-rise site this autumn.

It is carrying out trials of autonomously controlled construction robots. The trials are run inside the Robot Laboratory at Shimizu's Institute of Technology in Etchujima Tokyo.

The robots, developed by Shimizu, play various roles, such as conveying materials horizontally, welding steel columns or installing ceiling boards.

They will be deployed to real high-rise building site in Osaka later this year. In the next fiscal year, the robots will work at several large construction sites in Tokyo.

Shimizu said that it was concerned over a large exodus of skilled workers. “A pressing issue for the construction industry is how to find labour while raising productivity. Shimizu believes that the key to raising productivity is better working conditions, higher wages and more off-days,” said the company.

At the beginning of 2016, it began development of the Shimz Smart Site, a production system in which robots and humans will collaborate to move construction projects forward. “After a year and a half investing over 1 billion yen [£6.6bn] on intensive teamwork with universities and partners from other industries, we have completed the basic development and are ready for the next phase,” said the company.

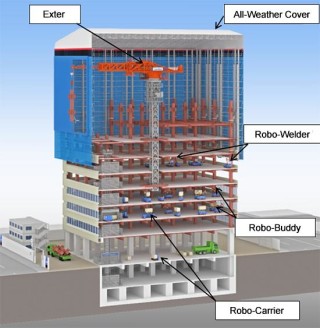

The robots undergoing autonomous control testing at the robot laboratory include: the Robo-Carrier, which conveys materials horizontally; the Robo-Welder, a robot that welds steel columns; and the Robo-Buddy, a multipurpose robot that handles construction work for ceilings and floors.

Related Information

Each one is a element of the Shimz Smart Site. An operator uses a tablet to send instructions that the robots carry out autonomously. “At the laboratory, we are verifying the robots' ability to autonomously respond to varying patterns of work instructions, and adjusting the programming governing their operation accordingly,” said Shimizu.

The Robo-Carrier links with a temporary elevator to transport the supplies to the designated spot - entirely unmanned - when the operator selects materials to convey and enters their destination in a tablet. On the way, the robot recognises obstacles and reroutes on its own to avoid them. At the same time, a collision prevention feature will halt the robot if a person comes near. To maintain an awareness of its position, the Robo-Carrier uses lasers to obtain real-time spatial data, which it compares with other spatial data acquired from BIM. At the lab, the robot lifts a pallet on which plaster boards with a combined weight of around 1t are placed, and then carries them inside a temporary elevator. “We are repeatedly checking how the robot sets down each pallet, then lifts them again in the elevator to convey them to a designated location,” said Shimizu.

The Robo-Welder has a robotic arm that uses laser shape measurement to determine the contours of a groove, or channel, on a steel column to be welded. The robot determines how to perform the job, such as the steps for cleanly placing the welding material in the channel. The robotic arm, with freedom of movement along six axes, performs the welding. Usually two Robo-Welders work together on one column. To verify that the Robo-Welder can handle the channels in columns to be used in the construction of a high-rise building in Osaka, Shimizu has been testing the robot's functions by altering the shape of the welding channels.

The Robo-Buddy has full control over two robotic arms with freedom of movement along six axes. After the sensors recognize the position of the ceiling grid frame material to insert ceiling suspension bolts, one arm lifts up a ceiling board to the correct position, while the other arm screws the board to the base material. “At the laboratory, we are checking the Robo-Buddy's ability to install boards at a high-rise building in Osaka, as well as performance under varying construction conditions,” said Shimizu.
